| Nazivni otvor |
Cov |

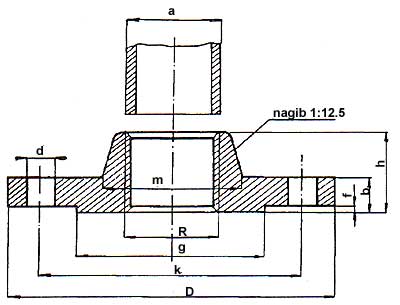

Mere prirubnice |
Mere vijka |
Težina |
| col |
mm |
a |
R |
D |
b |
h |
g |
l |
k |
d |
M |
n |
kp |
| NP10 |
NP16 |
| 1/8" |
6 |
10 |
R1/8" |
75 |
12 |
18 |
32 |
2 |
50 |
11.5 |
M10 |
4 |
4 |
0.326 |
| 1/4" |
8 |
12.25 |
R1/4" |
80 |
12 |
18 |
38 |
2 |
55 |
11.5 |
M10 |
4 |
4 |
0.338 |
| 3/8" |
10 |
16.75 |
R3/8" |
90 |
14 |
20 |
42 |
2 |
60 |
14 |
M12 |
4 |
4 |
0.544 |
| 1/2" |
15 |
21.25 |
R1/2" |
95 |
14 |
20 |
45 |
2 |
65 |
14 |
M12 |
4 |
4 |
0.613 |
| 3/4" |
20 |
26.75 |
R3/4" |
105 |
16 |
24 |
58 |
2 |
75 |
14 |
M12 |
4 |
4 |
0.910 |
| 1" |
25 |
33.5 |
R1" |
115 |
16 |
24 |
68 |
2 |
85 |
14 |
M12 |
4 |
4 |
1.10 |
| 11" |
32 |
42.25 |
R11" |
140 |
16 |
26 |
78 |
2 |
100 |
18 |
M16 |
4 |
4 |
1.50 |
| 11" |
40 |
48.25 |
R11" |
150 |
16 |
26 |
88 |
3 |
110 |
18 |
M16 |
4 |
4 |
1.78 |
| 2" |
50 |
60 |
R2" |
165 |
18 |
28 |
102 |
3 |
125 |
18 |
M16 |
4 |
4 |
2.43 |
| 21" |
65 |
75.5 |
R21" |
185 |
18 |
32 |
122 |
3 |
145 |
18 |
M16 |
4 |
4 |
3.18 |
| 3" |
80 |
88.25 |
R3" |
200 |
20 |
34 |
138 |
3 |
160 |
18 |
M16 |
4 |
8 |
4.12 |
| 4" |
100 |
113.5 |
R4" |
220 |
20 |
38 |
158 |
3 |
180 |
18 |
M16 |
8 |
8 |
4.47 |
| 5" |
125 |
139 |
R5" |
257 |
22 |
40 |
198 |
3 |
210 |
18 |
M16 |
8 |
8 |
6.83 |
| 6" |
150 |
164.5 |
R6" |
285 |
22 |
44 |
212 |
3 |
240 |
23 |
M20 |
8 |
8 |
7.92 |
|
|
