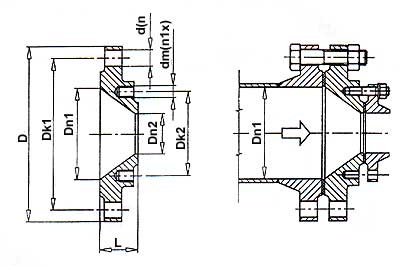

Čvrsti reducir Nazivna veličina Dn1 Dn2 Dk1 Dk2 D L d dm n n1 R 80/50 80 50 160 125 200 43 19 16 8 4 R 100/50 100 50 180 125 220 43 19 16 8 4 R 100/80 100 80 180 160 220 43 19 16 8 4 R 150/80 150 80 240 160 285 48 23 16 8 4 R 150/100 150 100 240 180 285 48 23 16 8 8 R 200/80 200 80 295 160 340 43 23 16 8 4 R 200/100 200 100 295 180 340 43 23 16 8 8 R 200/150 200 150 295 240 340 48 23 20 8 8 R 300/80 300 80 400 160 445 50 28 16 12 4 R 300/100 300 100 400 180 445 50 28 16 12 8 R 300/150 300 150 400 240 445 50 28 20 12 8 R 300/200 300 200 400 295 445 50 28 24 12 8 R 400/300 400 300 515 400 565 52 28 24 16 12 R 500/400 500 400 620 515 670 54 28 24 20 16 R 600/500 600 500 725 620 780 64 31 24 20 20 R 700/600 700 600 840 725 895 64 31 24 24 20
