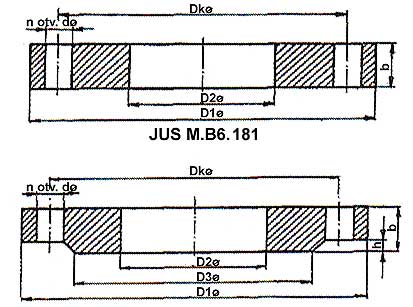

Čelične prirubnice ravne NP 10 DN 40-1500 DN D1O DkO D2O D3O b h n dO m(kg) 40 150 110 45.5/49.5 88 18 3 4 18 1.7 50 160 125 58/61.5 102 18 3 4 18 2.3 65 185 145 77 122 18 3 4 18 2.7 80 200 160 90 138 20 3 4 18 3.5 100 220 180 109/116 158 20 3 8 18 4 125 250 210 134.5/141 188 22 3 8 18 5.4 150 285 240 160.5/170 212 22 3 8 22 6.5 175 315 270 195 242 24 3 8 22 7.5 200 340 295 221 268 26 3 8 22 9 250 395 350 269/275 320 28 3 12 22 10.8 300 445 400 326 370 28 4 12 22 13.5 350 505 460 358/370 430 30 4 16 22 20 400 565 515 409/422 482 32 4 16 26 25.6 450 615 565 460 532 32 4 20 26 27.7 500 670 620 511 585 34 4 20 26 33.7 600 780 725 612.5 685 36 5 20 30 43 700 895 840 716 800 40 5 24 30 60.4 800 1015 950 816 905 40 5 24 33 66 900 1115 1050 918 1005 42 5 28 33 76.5 1000 1230 1160 1019 1110 42 5 28 36 90 1100 1310 1270 1124 1220 46 5 32 36 110 1200 1455 1380 1224 1330 48 5 32 39 138 1300 1575 1490 1324 1435 52 5 32 42 178 1400 1675 1590 1424 1535 54 5 36 42 197.2 1500 1785 1700 1524 1645 58 5 36 45 240
