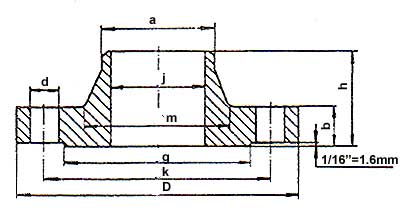

Prirubnice sa grlom - ANSI 150 LB
Nazivni otvor
DN
Prirubnica
Grlo
Zaptivna površina
RF
Vijci
D
(inch) (mm)
b
(inch) (mm)
k
(inch) (mm)
h
(inch) (mm)
J
(inch) (mm)
a
(inch) (mm)
m
(inch) (mm)
g
(inch) (mm)
no.
navoj
(inch) (mm)
d
(inch) (mm)
1/2"
31
7/16
2 3/8
1 7/8
0.62
0.84
1 3/16
1 3/8
4
1/2
5/8
88.9
11.1
60.3
47.6
15.7
21.3
30.2
34.9
12.7
15.9
3/4"
3 7/8
1/2
2 3/4
2 1/16
0.82
1.05
11
1 11/16
4
1/2
5/8
98.4
12.7
69.8
52.4
20.9
26.7
38.1
42.9
12.7
15.9
1"
41
8/16
3 1/8
2 3/16
1.05
1.32
1 15/16
2
4
1/2
5/8
107.9
14.3
79.4
55.6
26.7
33.5
49.2
50.8
12.7
15.9
11"
4 5/8
5/8
31
21
1.38
1.66
2 5/16
21
4
1/2
5/8
117.5
15.9
88.9
57.1
35.1
42.2
58.8
63.5
12.7
15.9
11"
5
11/16
3 7/8
2 7/16
1.61
1.90
2 9/16
2 7/8
4
1/2
5/8
127
17.5
98.4
61.9
40.9
48.3
65.1
73
12.7
15.9
2"
6
3/4
4 3/4
21
2.07
2.38
3 1/16
3 5/8
4
5/8
3/4
152.4
19.0
120.6
63.5
52.6
60.4
77.8
92.1
15.9
19
21"
7
7/8
51
2 3/4
2.47
2.88
3 9/16
4 1/8
4
5/8
3/4
177.8
22.2
139.7
69.8
62.7
73.1
90.5
104.8
15.9
19
3"
71
15/16
6
2 3/4
3.07
3.50
41
5
4
5/8
3/4
190.5
23.8
152.4
69.8
78
88.9
107.9
127
15.9
19
31"
81
15/16
7
2 13/16
3.55
4
4 13/16
51
8
5/8
3/4
215.9
23.8
177.8
71.4
90.2
101.6
122.2
139.7
15.9
19
4"
9
15/16
71
3
4.03
4.50
5 5/16
6 3/16
8
5/8
3/4
228.6
23.8
190.5
76.2
102.4
114.3
134.9
157.2
15.9
19
5"
10
15/16
81
31
5.05
5.56
6 7/16
7 5/16
8
3/4
7/8
254
23.8
215.9
88.9
128.3
141.2
163.5
185.7
19
22.2
6"
11
1
91
31
6.07
6.63
7 9/16
81
8
3/4
7/8
279.4
25.4
241.3
88.9
154.2
188.4
192.1
215.9
19
22.2
8"
131
1 1/8
11 3/4
4
7.96
8.63
9 11/16
10 3/8
8
3/4
7/8
342.9
28.6
298.4
101.6
202.7
219.2
246.1
269.9
19
22.2
10"
16
1 3/18
141
4
10.02
10.75
12
12 3/4
12
7/8
1
406.4
30.2
361.9
101.6
254.5
273
304.8
323.8
22.2
25.4
12"
19
1 1
17
41
12
12.75
14 3/8
15
12
7/8
1
482.6
31.7
431.8
114.3
304.8
323.8
365.1
381
22.2
25.4
14"
21
1 3/8
18 3/4
5
13.25
14
15 3/4
161
12
1
1 1/8
533.4
34.9
476.2
127
336.5
155.8
400
412.7
25.4
28.6
16"
231
1 7/16
211
5
15.25
15
18
181
16
1
1 1/8
596.9
36.5
539.7
127
387.3
406.4
457.2
469.9
25.4
28.6
18"
25
1 9/16
22 3/4
51
17.25
18
19 7/8
21
16
1 1/8
11
635
39.7
577.8
139.7
438.1
457.2
504.8
533.4
28.6
31.7
20"
271
1 11/16
25
5 11/16
19.25
20
22
23
20
1 1/8
11
698.5
42.9
635
144.5
488.9
508
558.8
584.2
28.6
31.7
22"
291
1 13/16
271
5 7/8
21.25
22
24
251
20
11
1 3/8
749.3
46
692.1
149.2
539.7
558.8
609.6
641.2
31.7
34.9
24"
32
1 7/8
291
6
23.25
24
26 1/8
271
20
11
1 3/8
812.8
47.6
749.3
152.4
590.5
609.6
663.6
692.1
31.7
34.9
